An Automatic Self Cleaning Aquarium Filter .........Starting at $3000.00
Large Commercial Systems Are Available
All dirt and waste is vacuumed automatically from the micron screen filter before it has a chance to break down.
New For Fall 2004
SHOWN IN BARE BONES ASSEMBLY
Objective: It is imperative to remove solid waste in an aquatic environment immediately before it has a chance to break down. Not just trap it in some type of filter that would just accelerate its decomposition. Especially on reef aquariums where accumulated waste can create excessive nitrate and phosphate buildup.
Solid waste will ultimately be broken down by decomposer microorganisms into a wide range of dissolved pollutants, adding to those already in the system. It makes no difference where in the system these solids decompose - the end result will always be the same, that is, further pollution. This is an important point as many aquarist think that once solid waste is out of sight (in the filter) it is no longer a problem.
With the rapid throughput of most filters, the dissolved pollutants produced as these solids break down are quickly pumped back into the system. What we really need is two filtration systems - one that enables us to remove the solid wastes from the system before it has time to pollute the water and the other to deal with the dissolved pollutants. After all, if we could remove waste solids and algae from the system, we would prevent most of the sources of pollution, have better water quality and fewer health problems. Not to mention we could maintain a higher bioload (more fish). With the CADS system installed free floating algae, food and any other small particles are continuously removed greatly reducing maintenance.
Solution: SeaVisions Patented C.A.D.S filter will successfully remove newly introduced waste continuously and automatically without wasting water as the case with most inferior backwash systems.
Description: The CADS micron screen filter is a carefully engineered device that is designed to be the first line of defense in aquatic water filtration. All of the water that is leaving the aquarium is routed to the CADS filter first. The water is gravity fed to the CADS filter and must pass through a fine mesh micron screen before it can proceed to the next filtration process. This screen can be anywhere from 50u to 150u in micron rating. The process will continue until the micron screen slightly clogs and starts to raise the water height in the filter chamber. A sensor will detect this rise of water and the one minute cleaning process will begin. The aquarium water will be temporarily rerouted bypassing the screen. The screen will be rotated at the same time a vacuum is sucking the waste away that has accumulated on the screen. The waste is routed to a drain or a collection tank that is separated from the systems main water. For you reefers the system can be manually bypassed during coral feeding or any time you wish to keep nutrients suspended. The patentable significance of this system is the automatic rerouting of the systems water so the screen can be vacuumed. Thus this process does not waste precious water. The system is so sensitive to dirt and waste that a cleaning cycle will be activated almost immediately after feeding or any disturbance to the gravel or algae cleaning. The CADS system is designed to encompass a complete biological filter with a protein skimmer and a UV sterilizer. On reef aquariums the bioballs are not necessary in this system. However since there is no accumulation of detritus due to the fine CADS filter there is no harm using them. There will be no build up of waste on the balls to promote nitrate. The CADS is a perfect matched system for the DialySeas. This product can be designed for any size aquarium and is now being used on all 2005 and later SeaVisions aquarium systems. The foot-print size of the overall SeaVisions filtration system has now been reduced significantly. To that end SeaVisions can produce aquarium systems that are second to none in design, performance, reliability, effectiveness and long maintenance intervals. The CADS chamber can be designed to be used on a berlin system or any other system that uses a sump. If you are a aquarium expert and would like a custom unit designed with your particular choice of media, skimmers or chambers please send us your specifications.
Flash Version of Cads Demo
See another video of waste and parasites caught by the 100 micron cads screen 60X Magnification
C.A.D.S. Vacuum Patented C.A.D.S. Cloth 300 Patent Pending See FLASH Patent Pending Head Unit for C.A.D.S. Cloth 600 Patent Pending Head Unit for C.A.D.S. Cloth 900
45 GPM Normal Sump 30" Long 16" Wide 16.5 Tall 28.5 w/ C.A.D.S Head
50 GPM Large Sump 36" Long 18" Wide 18" Tall 30" w/ C.A.D.S Head
55 GPM XL Sump 36" Long 20" Wide 18" Tall 30" w/C.A.D.S Head
Custom Sizes In Vacuum Model Available Please Call.
300 30 GPM Mini Sump 26" Long 13" Wide 13.5 Tall 26 w/ C.A.D.S Head
600 50 GPM Normal Sump 30" Long 16" Wide 16.5 Tall 28.5 w/ C.A.D.S Head
600XL 55 GPM XL Sump 36" Long 20" Wide 18" Tall 30" w/C.A.D.S Head
900 Commercial CADS CLOTH Call for sizes.
C.A.D.S Head Unit Only
300 11.5" Wide 10" Long 11.5" High
600 15.5" Wide 12" Long 13" High

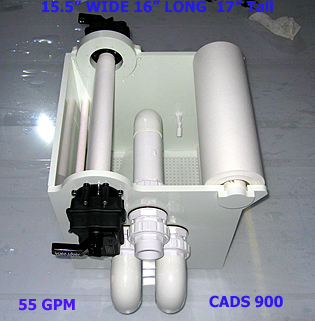

900 15.5" Wide 16" Long 17" High
Complete Stand Alone Filtration Systems
Complete Stand Alone Filtration Systems With Aquarium Frame Ready For Your Aquarium
Some Installs with DialySeas And CADS
Ohio 44" Diameter Cylinder 90" tall water height - DialySeas model 1 and Cads
For a low band width video of this aquarium and system click here
For a higher band width video of this aquarium click here SeaWorld Orlando
Lucky Strike Louisville, Kentucky 10' Long 2' Wide 6' High Window - DialySeas Model 1 and 2 CADS
10' Long 3' wide 4' high window - DialySeas Model 1 and 2 CADS
Delivery 12-18-2004 Ohio 5' Diameter Cylinder 5' water Height - DialySeas Model 1 and CADS

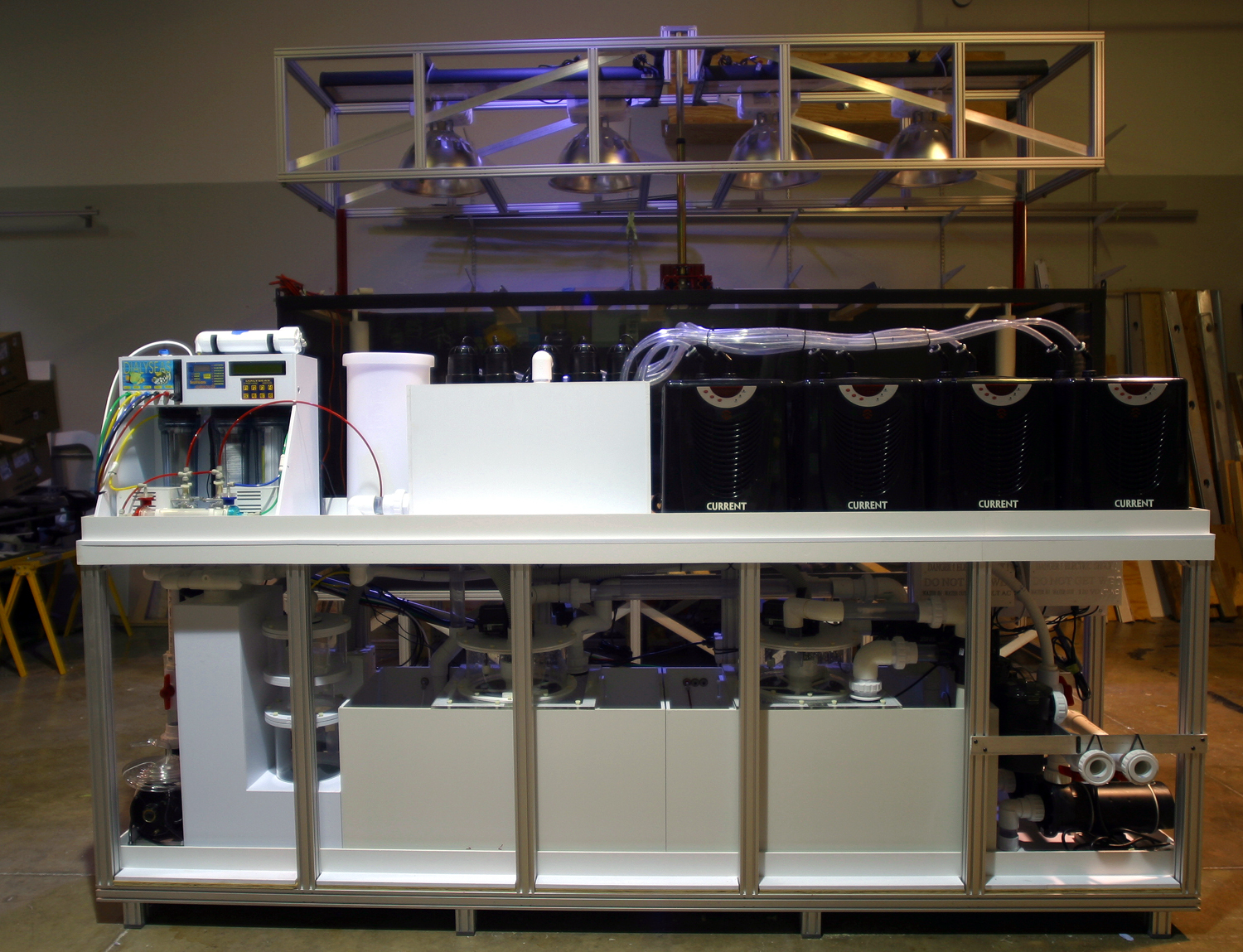

New Marine Grade Aluminum Frames with CADS and DialySeas
